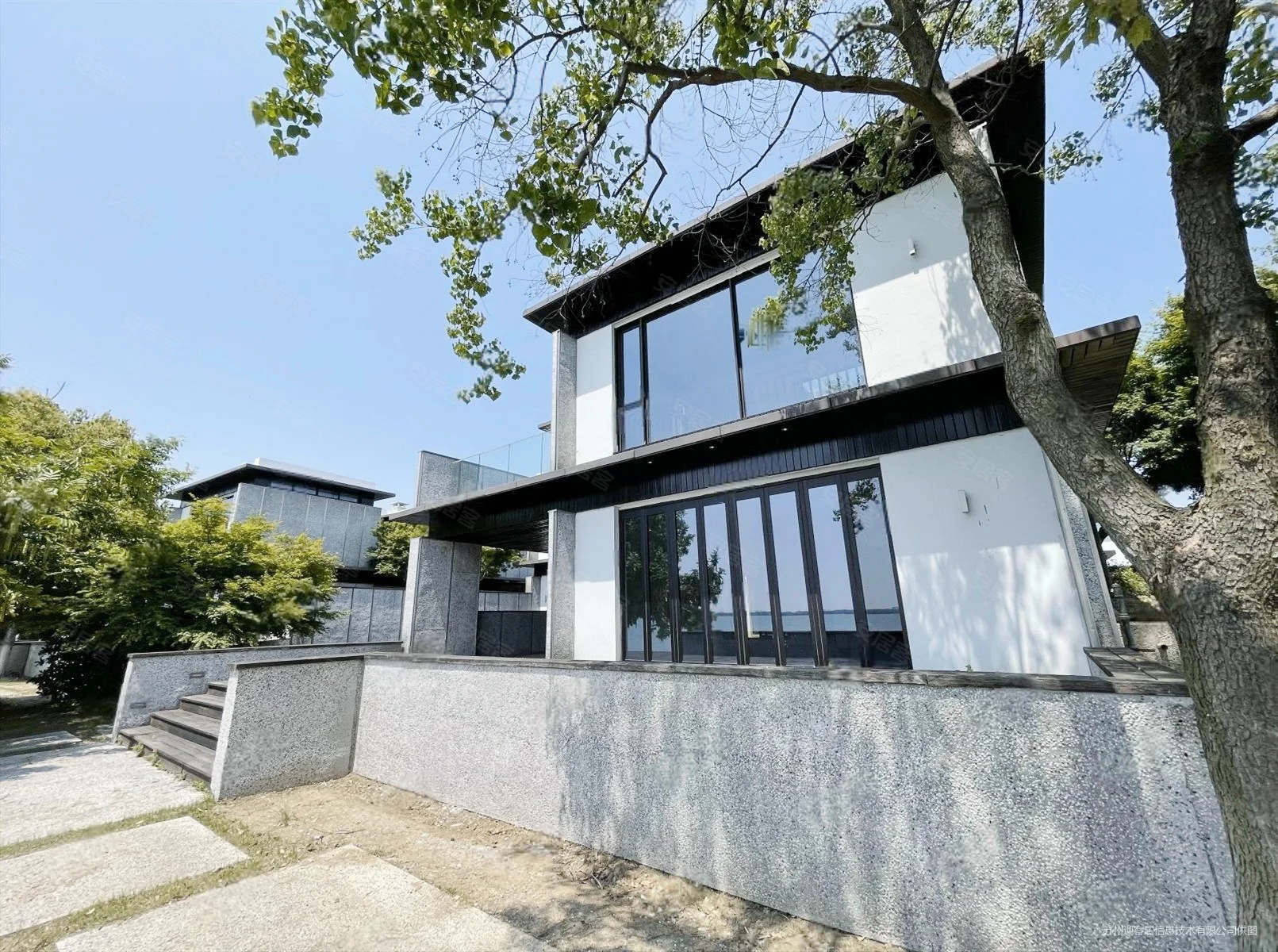

Self-built house window selection: comparison between 80 Series single casement windows and broken bridge aluminum

What is the essential difference between the 80 Series single casement window and the thermal break aluminum?

Many buyers, when first hearing about the "80 Series single casement window" and "thermal break aluminum," mistakenly assume these are two opposing product categories. In reality, they describe two different dimensions of a window:The "80 Series" refers to the width dimension of the profile, while "thermal break" refers to whether the interior of the profile has been thermally separated.Understanding this point will prevent detours in later selection.

From the profile structure perspective: integral profile versus thermal break strip

The profile of a standard 80 Series single casement window isintegrally extrudedaluminum alloy, with the inner and outer frame profiles directly connected through metal. Metal conducts heat quickly, so this structure is naturally at a disadvantage in terms of thermal insulation—in winter, indoor heat easily transfers through the profiles to the outside, and in summer, the reverse happens.

Thermal break aluminum, on the other hand, embeds athermal break strip(usually made of PA66 nylon or polyamide) in the middle of the profile, "breaking" the connection between the indoor and outdoor aluminum alloy. The heat conduction path is interrupted by this non-metallic material, significantly improving the overall thermal insulation performance of the window. This is also the origin of the name "thermal break."

Therefore,The 80 Series single casement window and the thermally broken aluminum are not an either-or choice.—Thermally broken aluminum can also be made into the 80 Series. The real choice is whether your project needs the insulation benefits brought by the thermally broken structure, and whether you are willing to increase the budget for it.

From the reference configuration: 1.8mm wall thickness and 5+22A+5 glass

Taking the current 80 Series thickened single casement aluminum window as an example, the reference configuration is1.8mm profile wall thickness + 5+22A+5 insulating glass. These two numbers respectively determine the "skeleton strength" and the "upper limit of sound insulation and thermal insulation" of the window.

• 1.8mm wall thickness: This is the thickness of the load-bearing part of the profile.The national standard requires that the wall thickness of exterior window profiles be no less than 1.4mm; 1.8mm is a thickened specification, providing stronger wind pressure resistance and better resistance to deformation over long-term use.For high-rise residential buildings or areas with high wind pressure, this thickening is practically significant;For low-rise self-built houses, 1.4mm may be sufficient, but 1.8mm offers more margin.

• 5+22A+5 insulating glass: Two 5mm glass panes with a 22mm air layer in between.The thicker the air layer, the better the sound insulation and thermal insulation.22mm is above average, and when combined with thermal break profiles, it can achieve full effect—if the profile is not thermal break, the insulation performance of the insulating glass will be partially 'short-circuited' by the metal conduction of the profile.

A one-sentence summary of the trade-offs: If the project is in a hot-summer-cold-winter region, needs sound insulation due to street frontage, or is on a higher floor, the combination of thermally broken aluminum with thickened profiles is worth it;if the project is in a mild climate region, has a limited budget, and has low insulation requirements, the standard 80 Series single casement window can also meet basic needs. Next, we recommend confirming your project's region, floor height, and budget range with the current website team to match the specific profile and glass solutions.

In the self-built house scenario, who is the 80 Series single casement window and thermally broken aluminum each suitable for?

When choosing windows for a self-built house, the core is not 'which is better' but 'where your house is and what you care about most'. The 80 Series single casement window and thermally broken aluminum are two different routes. Below, we break them down directly according to the three most common scenarios for self-built houses.

80 Series single casement window: suitable for projects with clear needs and controllable budgets

The 80 Series thickened single-opening aluminum alloy window (profile thickness 1.8mm, reference configuration 5+22A+5 insulating glass) is suitable for homeowners who "know what they want." For example, if you clearly want an inward-opening window, with fixed dimensions, and no extreme requirements for insulation, then the 80 Series is the most cost-effective choice. Its advantages lie in: the thickened profile provides better structural strength, and combined with insulating glass, it is sufficient for sound insulation and thermal insulation in ordinary residential scenarios;At the same time, it supports customization according to drawings and batch orders. If you have multiple windows of the same size in your home, procurement and installation are more convenient.

Who is it suitable for?

• Self-built houses in non-severe cold regions, where the lowest winter temperature is not lower than about -10°C

• Clear requirements for window functions: can open, can close, no air leakage, no condensation

• Budget controlled within a few hundred yuan per square meter, not willing to pay for performance that will not be used

Not suitable for:

• Houses in severely cold regions such as Northeast China and Inner Mongolia, where extremely strong thermal insulation is needed in winter

• Expectations for "more stable and quieter" sound insulation (e.g., bedrooms adjacent to busy roads with heavy traffic)

Thermally broken aluminum: suitable for scenarios with higher thermal insulation requirements

The core value of thermally broken aluminum lies in the thermal break strip in the middle of the profile, which cuts off the heat conduction path. If your self-built house is in the north, or you plan to install large floor-to-ceiling windows in the bedroom and living room, thermally broken aluminum can significantly reduce cold radiation near windows in winter and air conditioning energy consumption in summer. But note that thermally broken aluminum is usually 30%-50% more expensive than ordinary 80 Series, and if you only make small-sized windows, the energy-saving benefits from this price difference may not pay back for many years.

Who is it suitable for?

• Self-built houses in cold regions, or with large window areas (single pane exceeding 2 square meters)

• Long-term residents who are willing to make an upfront investment for annual heating/cooling cost savings

• Sensitive to the perceived temperature near windows, not wanting to feel cold near windows in winter

Not suitable for:

• Tight budget, and the house is in a region with hot summers and warm winters

• Many windows but each with a small area, so energy-saving benefits are limited

Direct answers to three specific questions

1. For a self-built house on the coast, which one is more corrosion-resistant?

Both are usable, but it depends on the specific configuration. The 80 Series uses 6063-T5 aluminum alloy profiles, which inherently have good corrosion resistance and are suitable for high salt spray environments;The base material of thermal break aluminum profiles is also aluminum alloy, and its corrosion resistance depends on the surface treatment process (such as anodizing, powder coating). If you are in a coastal area, the key is not choosing between 80 series and thermal break aluminum, but confirming whether the profile surface treatment meets marine environment standards and whether the hardware is made of stainless steel.

This point needs to be confirmed with the current website team regarding whether the specific configuration you choose includes coastal anti-corrosion treatment.

2. If you have requirements for sound insulation, is the 80 series sufficient?

It is sufficient, but with limitations. The reference configuration for the 80 series is 5+22A+5 insulating glass, which provides good sound insulation against mid-frequency noises such as daily street noise, human voices, and dog barks. However, if your home is close to a highway, railway, or airport, insulating glass has limited sound insulation against low-frequency noises (such as truck engine sounds). In this case, you need to upgrade to laminated insulating glass or increase the glass thickness.

In other words, the sound insulation capability of the 80 series depends on the glass configuration, not the profile itself.

3. Limited budget: choose the 80 Series or broken-bridge aluminum?

If your budget is limited and your house is not in a severely cold region, directly choose the 80 Series. Spend the saved money on better glass configurations (such as upgrading to double-layer laminated glass) or better hardware; the actual improvement in living experience will be more noticeable. The energy-saving advantage of broken-bridge aluminum takes 3-5 years or even longer to recover the price difference through electricity savings. If your budget is tight, there is no need to sacrifice current renovation quality for this long-term benefit.

Next step: confirm actions

Before making your final decision, you need to confirm three specific questions with the current website team:

1. The lowest winter temperature and highest summer temperature in your area—This determines whether you really need the thermal insulation performance of broken-bridge aluminum

1. Maximum single sash size for windows—For large windows over 2 square meters, it is recommended to use broken bridge aluminum or thickened profiles

1. Whether the glass configuration can be adjusted—If you have sound insulation requirements, confirm whether the 5+22A+5 can be upgraded to laminated insulating glass, and what the price difference is

Provide these three conditions to the team, and they can help you confirm whether the specific configuration of the 80 Series meets your scenario, or whether the plan needs to be adjusted.

Budget and customization: Where is the cost-performance boundary of the 80 Series single casement window?

The cost-performance of the 80 Series single casement window is not about the lowest price per square meter, but about locking in the budget with clear specifications. Its boundary is clear: it is suitable for projects with determined specifications, bulk procurement, and delivery according to drawings;It is not suitable for scattered orders where requirements are still being adjusted repeatedly and each window is expected to have a different configuration.

Budget Allocation: Profiles, Glass, Hardware, and Installation

Taking the reference configuration (1.8mm wall thickness, 5+22A+5 insulating glass, 1000×1000mm) as an example, the approximate budget breakdown is as follows:

• Profiles (approximately 40%-50%): The 1.8mm thickened wall is the major cost component.It is not recommended to save on this cost—it directly determines the wind pressure resistance rating and long-term deformation resistance, especially for high-rise or coastal projects.

• Glass (approximately 25%-35%): 5+22A+5 insulating glass is the core of sound insulation and thermal insulation.If the project requires higher thermal insulation, you can switch to Low-E or thicker glass, but be aware that for each grade increase, the glass cost increases by approximately 15%-30%.

• Hardware (approximately 10%-15%): hinges, locking points, and transmission devices.This part is easily overlooked, but it is precisely the hardware that has the highest repair rate.When purchasing in bulk, it is recommended to specify the brand or grade to avoid the labor cost of replacing them one by one later exceeding the price difference of the hardware itself.

• Installation and auxiliary materials (approximately 10%-15%): foam adhesive, sealant, and waterproofing treatment.In engineering projects, installation losses and on-site coordination costs often affect the final cost more than the materials themselves.

Priority recommendations: Profile wall thickness > glass configuration > hardware brand > appearance color. The first two determine the performance baseline, while the latter two affect user experience and durability, but can be reduced when the budget is tight.

Customization capability: custom orders by drawings and batch orders

This 80 Series single casement window supports customization according to drawings, but the premise of customization is that the drawings are clear. What you need to provide are:Opening dimensions, opening method (inward/outward), glass configuration requirements, profile color (powder coating or anodizing color code). The more complete this information is, the closer the quotation is to the final landed price, and the less rework there will be later.

The customization process typically involves four steps:

1. Submit drawings and requirements(dimensions, wall thickness, glass, hardware, quantity)

1. Sample confirmation—Before mass production, a physical sample window is made to confirm the profile cross-section, opening feel, and sealing performance.

1. Mass production—After sample confirmation, production is scheduled according to the order quantity.

1. Shipping and acceptance—Check dimensions and configuration against the drawings

Here is a key trade-off:Do not skip the sample confirmation step。 Especially if you are a distributor or contractor, the sample is not only for your own review but also serves as the basis for confirmation by the owner or the general contractor. The cost of one sample confirmation is far lower than the rework cost of discovering incorrect opening direction or glass specifications after batch installation.

Suitable for customization: When the project has uniform window types, quantities of dozens or more, and the drawings have been confirmed by the design institute or the owner. Not suitable situations: For single-unit orders, where each unit's dimensions vary greatly and you are still comparing different window types, it is best to finalize the plan first before discussing customization, otherwise customization costs will be spread very high.

Next step: confirm actions: Send the project drawings (including opening dimensions, opening methods, and glass requirements) to the hyperstron team, and request a quotation and sample plan based on your specific configuration. Focus on confirming two things: first, whether the 1.8mm wall thickness meets the wind pressure resistance requirements of the project location; second, whether the 5+22A+5 glass needs to be adjusted to Low-E or double-silver configurations based on local climate. Once these two points are confirmed, the budget and customization plan are basically locked in.

Final decision: In what situations should you choose the 80 Series single casement window, and in what situations should you choose the broken bridge aluminum?

Scenarios recommended for choosing the 80 Series single casement window:

• Controllable budget and clear requirements: The profile cost and processing complexity of the 80 Series single casement window are lower than those of broken bridge aluminum, making the total price more controllable for the same area.For self-built housing projects with limited budgets but requiring stable performance, it is a more cost-effective choice.

• Regions with mild climates: In areas where the lowest winter temperature is not below -5°C and there is no sustained extreme heat in summer, the 80 Series thickened profiles with 5+22A+5 insulating glass can meet basic insulation needs, and the additional investment in thermally broken aluminum has a longer payback period.

• Moderate sound insulation requirements: For scenarios adjacent to streets but not main roads, or where bedrooms do not directly face noise sources, the 80 Series with insulating glass can meet daily sound insulation needs without paying extra for sound insulation performance that will not be used.

• Need for stable bulk supply: The 80 Series has mature processing technology and universal accessories, making it suitable for engineering bulk procurement and projects with tight schedules.

Scenarios where thermally broken aluminum is recommended:

• Regions with severe cold or extreme heat: In areas where winter temperatures drop below -10°C or summer temperatures consistently exceed 35°C, the thermal break strips in thermally broken aluminum effectively reduce heat bridge conduction, leading to significant differences in long-term air conditioning/heating energy consumption. This is suitable for users willing to invest in long-term energy savings.

• Large window sizes: When a single sash area exceeds 1.5 square meters, the profile rigidity and wind pressure resistance of thermally broken aluminum are more stable and less prone to deformation.

• Long-term owner-occupancy: If you plan to live in the property for more than 10 years, the energy-saving benefits and maintenance cost advantages of thermally broken aluminum will gradually amplify, and the initial price difference can be offset by long-term energy savings.

Key information that must be confirmed with the supplier before selection:

1. Specific working conditions: The lowest winter temperature, highest summer temperature, floor height, and local wind pressure level in the area where the building is located.

1. Noise Environment: Whether the window faces a main road, railway, or other continuous noise sources.

1. Glass Configuration Adjustment: 5+22A+5 is a reference configuration; can it be changed to other insulating or laminated glass solutions based on sound insulation or thermal insulation needs?

1. Customization and Batch Capability: Whether the opening size is non-standard, and the minimum order quantity, price increase ratio, and delivery time for non-standard customization.

Key Trade-offs: The 80 Series single casement window is a pragmatic choice that is "sufficient and cost-effective," while the thermal break aluminum is an upgraded choice that "spends more budget in exchange for long-term energy efficiency and comfort." If your project does not yet have clear answers to the above information, it is recommended to first organize the opening dimensions, the climate of the region, and the budget ceiling, and then confirm the matching solution with the supplier.

Frequently Asked Questions

Q1: What is the approximate price difference between the 80 Series single casement window and the thermal break aluminum? A: Generally, thermal break aluminum is 30%-50% more expensive than the same specification 80 Series single casement window, depending on the profile wall thickness, glass configuration, and hardware brand. The price difference mainly comes from the thermal break strip material and processing technology, not the profile itself.

Q2: Can the 80 Series single casement window be used in coastal high salt spray areas? A: Yes. This product uses 6063-T5 aluminum alloy. If the surface treatment is powder coating or anodizing, the corrosion resistance is sufficient for coastal environments.

However, you need to confirm the surface treatment process grade with the supplier; fluorocarbon coating is more resistant to salt spray than ordinary powder coating.

Q3: If I want to upgrade sound insulation later, can the 80 Series change the glass? A: Yes. As long as the glass groove width of the window frame profile allows, you can later replace it with laminated glass or double insulating glass.

It is recommended to confirm whether the groove size is compatible with future upgrade plans when placing the first order, to avoid changing the frame.

Q4: For bulk procurement of 80 Series single casement windows, what is the minimum order quantity? A: Different suppliers have different policies. This product supports bulk orders and OEM customization, but the specific minimum order quantity depends on your project scale, window type complexity, and whether private labeling is required. Please contact the current website team directly for a quote.

Q5: Is thermal break aluminum necessarily better for sound insulation than the 80 Series single casement window? A: Not necessarily. Sound insulation mainly depends on the glass configuration and sealing process, not on whether the profile is thermal break.

If the 80 Series is equipped with 5+22A+5 insulating glass and the thermal break aluminum with 5+9A+5, their sound insulation performance will be similar. The advantage of thermal break aluminum lies in thermal insulation, not sound insulation.
